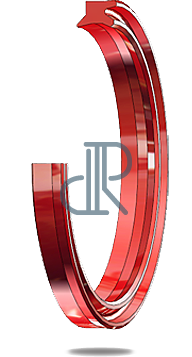

• Wiper - DA 211
hydraulic wiper da211

Wiper including additional sealing lip. Often used in combination with composite seals/sliding seals, type DS109, to reduce residual oil film. Also used as complete solution for pneumatic applications in small diameter range. Max. allowed pressure load: 16 bar (230 psi).

hidraulični brisač da102
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-20 °C +115 °C 0,4 m/s HPU 94°
-20 °C +115 °C 0,4 m/s HPU 55° D
-50 °C +115 °C 0,5 m/s SL-PU 94°
-50 °C +115 °C 0,4 m/s LT-PU 94°
min. Temp. max. Temp. max. Speed max. Pressure Material
-30 °C +110 °C 0,5 m/s NBR 85°
-20 °C +150 °C 0,5 m/s H-NBR 85°
-20 °C +220 °C 0,5 m/s FPM 82°
-45 °C +130 °C 0,5 m/s EPDM 85°
-60 °C +200 °C 0,3 m/s MVQ 85°
shema utora hidrauličnog brisača

*Materijali

  • HPU
  • NBR
  • H-NBR
  • EPDM
  • FPM
  • MVQ

*Dimenzije

  •     L1
  •     L2
  • ∅ d1
  • ∅ D2
  • ∅ D1

*Količina

  • /
