• Guide ring - DF 102

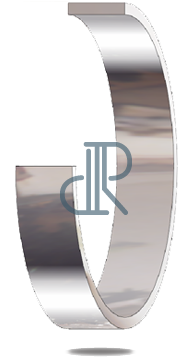

hydraulic guide ring

Most common guide ring without chamfer for rod or piston application. Used in many standard cylinders, majority of applications require split version for installation into closed housings, non split design available as well (bushings).

vodilica cilindra
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-50 °C +100 °C 4 m/s / / POM
-200 °C +260 °C 5 m/s / / PTFE
-50 °C +115 °C 4 m/s / / PA
-60 °C +250 °C 4 m/s / / PEEK
min. Temp. max. Temp. max. Speed max. Pressure Material
-200 °C +260 °C 5 m/s / / PTFE filled
-200 °C +80 °C 4 m/s / / UHMW-PE
/ / / / / /
/ / / / / /
/ / / / / /
grove dimensions of the rod seals

*Materijali

  • POM
  • PTFE
  • PA (Nylon)
  • POLYESTER-resin

*Dimenzije

  •     L1
  •     E
  •     Z
  • ∅ d1
  • ∅ D1

*Količina

  • /
