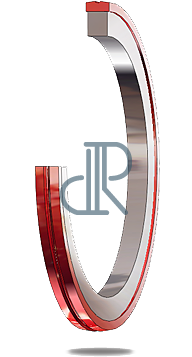

- Piston seal- DK 143
Piston seal DK143 is a squeeze type, bi-directional piston seal for use in medium to heavy duty hydraulic applications. This seal is primarily designed for linear applications but has been successfully used as a low speed rotary seal. The standard material for this profile is polyurethane with rubber energizer. Polyurethan cap is energized using a resilient nitrile elastomer offering low compression set.
Primary use
Seal limitation
Not applicable
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material/ O-ring | |
|---|---|---|---|---|---|
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | HPU 94° | NBR°85 |
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | HPU55 D | H-NBR°85 |
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | SL-PU 94° | FPM°82 |
| -20 °C | +115 °C | 0,4 m/s | max. 400 bar | LT-PU 94° | EPDM°85 |
| min. Temp. | max. Temp. | max. Speed | max. Pressure | Material/ O-ring | |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
| / | / | / | / | / | / |
*Materijali
- HPU55/NBR
- PTFE/NBR
- PTFE/HPU70
*Dimenzije
- L1
- ∅ d1
- ∅ D1
*Količina
- /
