• Pneumatic rod seal- DP 104

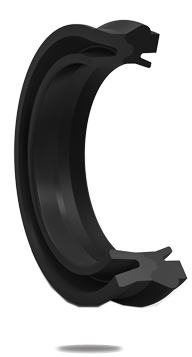

hydraulic piston seal dp104

DP104 is a two piece single acting pneumatic rod seal which consists of one nitrile rubber sealing element and one polyester elastomer scrapper profile ring.

hidraulični brisač da101
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-30 °C +105 °C 1 m/s max. 16 bar NBR80 TPE55D
/ / / / /
/ / / / /
/ / / / /
min. Temp. max. Temp. max. Speed max. Pressure Material
/ / / / /
/ / / / /
/ / / / /
/ / / / /
/ / / / /

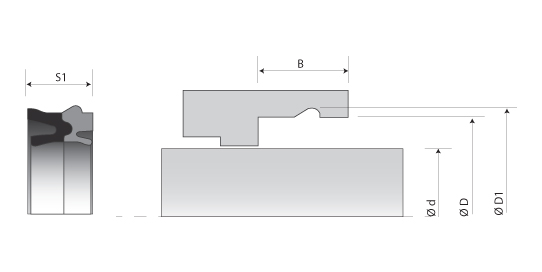

grove dimensions of the rod seals

*Materijali

  • TPE
  • NBR

*Dimenzije

  •     S1
  •     B
  • ∅ d
  • ∅ D
  • ∅ D1

*Količina

  • /
