• Rotation seal- DR 102

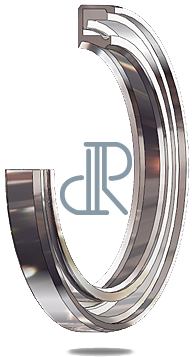

hydraulic rotation seal dr101

As profile DR101 but with additional dust-lip to avoid ingress of dust and dirt.

hidraulični brisač da101
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material / Back up ring
-20 °C +115 °C 0,5 m/s max. 0.5 bar HPU 94° POM/PTFE/PA
-20 °C +115 °C 0,5 m/s max. 0.5 bar HPU 55° D POM/PTFE/PA
-50 °C +115 °C 0,5 m/s max. 0.5 bar SL-PU 94° POM/PTFE/PA
-50 °C +115 °C 0,5 m/s max. 0.5 bar LT-PU 94° POM/PTFE/PA
min. Temp. max. Temp. max. Speed max. Pressure Material / Back up ring
-30 °C +110 °C 0,5 m/s max. 0.5 bar NBR 85° POM/PTFE/PA
-20 °C +150 °C 0,5 m/s max. 0.5 bar H-NBR 85° POM/PTFE/PA
-20 °C +220 °C 0,5 m/s max. 0.5 bar FPM 82° POM/PTFE/PA
-45 °C +130 °C 0,5 m/s max. 0.5 bar EPDM 85° POM/PTFE/PA
-60 °C +200 °C 0,5 m/s max. 0.5 bar MVQ 85° POM/PTFE/PA
grove dimensions of the rod seals

*Materijali

  • SL-PU
  • NBR
  • H-NBR
  • FPM

*Dimenzije

  •     L1
  • ∅ d1
  • ∅ D1

*Količina

  • /
