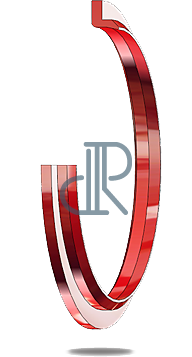

• Rod seal- DS 116
hydraulic rod seal ds116

Simple hat seal, usually fixed in housing with clamp flange. Mainly used for replacement in old hydraulic and pneumatic cylinders or for secondary applications..

hydraulic seal ds108
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-20 °C +115 °C 0,5 m/s max. 160 bar HPU 94°
-20 °C +115 °C 0,5 m/s max. 160 bar HPU 55° D
-50 °C +115 °C 0,5 m/s max. 160 bar SL-PU 94°
-50 °C +115 °C 0,5 m/s max. 160 bar LT-PU 94°
min. Temp. max. Temp. max. Speed max. Pressure Material
-30 °C +110 °C 0,5 m/s max. 120 bar NBR 85°
-20 °C +150 °C 0,5 m/s max. 120 bar H-NBR 85°
-20 °C +220 °C 0,5 m/s max. 120 bar FPM 82°
-45 °C +130 °C 0,5 m/s max. 120 bar EPDM 85°
-60 °C +200 °C 0,4 m/s max. 120 bar MVQ 85°
grove dimensions of the rod seals

*Materijali

  • HPU
  • NBR
  • H-NBR
  • EPDM
  • FPM
  • MVQ

*Dimenzije

  •     L1
  •     L2
  • ∅ d1
  • ∅ D2
  • ∅ D1

*Količina

  • /
