• Rod seal- DS 125

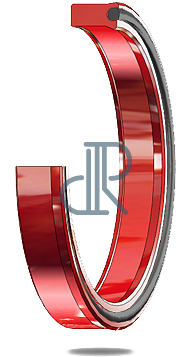

hydraulic rod seal ds125

O-ring activated rod seal with additional stabilizing lips and which gives greather stabilty in the seal grove, mainly used in mining industry or in telescope cylinders.

hydraulic rod seal ds125
  • Primary use
  • Seal limitation
  • Not applicable
min. Temp. max. Temp. max. Speed max. Pressure Material
-20 °C +115 °C 0,5 m/s max. 400 bar HPU 94°
-20 °C +115 °C 0,5 m/s max. 400 bar HPU 55° D
-50 °C +115 °C 0,5 m/s max. 400 bar SL-PU 94°
-50 °C +115 °C 0,5 m/s max. 400 bar LT-PU 94°
min. Temp. max. Temp. max. Speed max. Pressure Material
-30 °C +110 °C 0,5 m/s max. 160 bar NBR 85°
-20 °C +150 °C 0,5 m/s max. 160 bar H-NBR 85°
-20 °C +220 °C 0,5 m/s max. 160 bar FPM 82°
-45 °C +130 °C 0,5 m/s max. 160 bar EPDM 85°
-60 °C +200 °C 0,4 m/s max. 160 bar MVQ 85°
grove dimensions of the rod seals

*Materijali

  • HPU
  • NBR
  • H-NBR
  • EPDM
  • FPM
  • MVQ

*Dimenzije

  •     L1
  •     L2
  • ∅ d1
  • ∅ D2
  • ∅ D1

*Količina

  • /
